Fitting Cargo When Container Size Limits Your Load
The right container size balances internal cargo volume with legal road payload limits. Standard ocean containers span from 20-foot units holding 33.2 cubic meters to 40-foot high cubes holding 76.2 cubic meters. Selecting the correct size keeps freight moving smoothly, avoids costly repacking fees, and prevents empty headroom or trailer axle overloads.
You lose money every time a loaded truck leaves your warehouse with empty vertical space or turns away because the freight exceeds legal axle weight limits. Booking freight without balancing cubic capacity against gross weight ratings forces you to choose between paying to move trapped air or repacking pallets at the dock. Choosing the right container size directly determines whether your supply chain moves goods predictably or stalls behind emergency cross-dock fees.
Is Standard Container Size Too Restrictive for Cargo?
A standard intermodal unit gives you a rigid envelope that does not forgive planning errors, particularly when your products have awkward profiles or fragile packaging that rules out double stacking. When we review logistics plans for high-density goods, the basic container size often works well for heavy metal parts or dense raw commodities, but it creates sharp bottlenecks for finished consumer goods, packaged furniture, and retail merchandise.
| Container Type | External Dimensions (L x W x H) | Internal Dimensions (L x W x H) | Max Gross Weight | Nominal Cubic Volume |
|---|---|---|---|---|
| 20ft General Purpose | 6.06m x 2.44m x 2.59m | 5.90m x 2.35m x 2.39m | 30,480 kg | 33.2 m³ |
| 40ft General Purpose | 12.19m x 2.44m x 2.59m | 12.03m x 2.35m x 2.39m | 30,480 kg | 67.7 m³ |
| 40ft High Cube | 12.19m x 2.44m x 2.89m | 12.03m x 2.35m x 2.69m | 30,480 kg | 76.2 m³ |
Internal Volume Constraints
The interior walls of a standard steel unit steal valuable centimeters from your nominal cargo plans because corrugated sheet profiles, internal lashing rings, and door header gussets cut into raw measurements. You have 2.35 meters of usable internal width to work with, meaning two standard metric pallets measuring 1.2 meters wide will not fit side by side across the floor unless you pinwheel them or load them with zero overhang. If your cargo bulges even two centimeters past the pallet edge, your crew will waste hours trying to force rows down the box, often damaging corrugated cartons or scuffing product finishes against steel corrugations.
Vertical clearance presents another hard boundary because a standard eight-foot-six-inch box provides roughly 2.39 meters of internal clearance from floorboard to ceiling beam. If your production line builds pallets to a height of 1.25 meters to match domestic dry vans, you cannot double-stack them inside a standard ocean unit without clipping the door frame or crushing top cartons against roof bows. We advise operations teams running high-volume, low-density cargo to step directly up to high-cube equipment rather than trying to compress packaging down into standard dry vans.
Payload Weight Trade-Offs
A shipping box can run out of weight capacity long before its internal volume fills up, which surprises shippers moving machinery, ceramic tile, or liquids. While a standard unit carries a certified payload of roughly 28,000 kilograms on its CSC plate, highway rules rarely allow that much gross weight on a standard three-axle chassis without special permits.
- Tare weight penalty: The tare weight of the steel box consumes 2,200 to 2,400 kilograms of your gross vehicle allowance before you place a single carton inside.
- Axle distribution limits: Placing heavy cargo too far toward the rear doors will overload trailer drive axles and trigger roadside transport fines during port drayage.
- Payload density ceiling: Cargo weighing more than 850 kilograms per cubic meter will hit maximum highway weight allowances when the box is barely half full by volume.
Will a 20ft Container Size Fit Typical Warehouse Bays?
Most commercial distribution centers design their exterior yards and dock pits around forty-foot trailers, which makes dropping a smaller unit seem simple at first glance. However, managing a 20ft container size at a modern loading dock introduces specific operational friction that site managers often overlook during yard planning.
Exterior Footprint Clearances

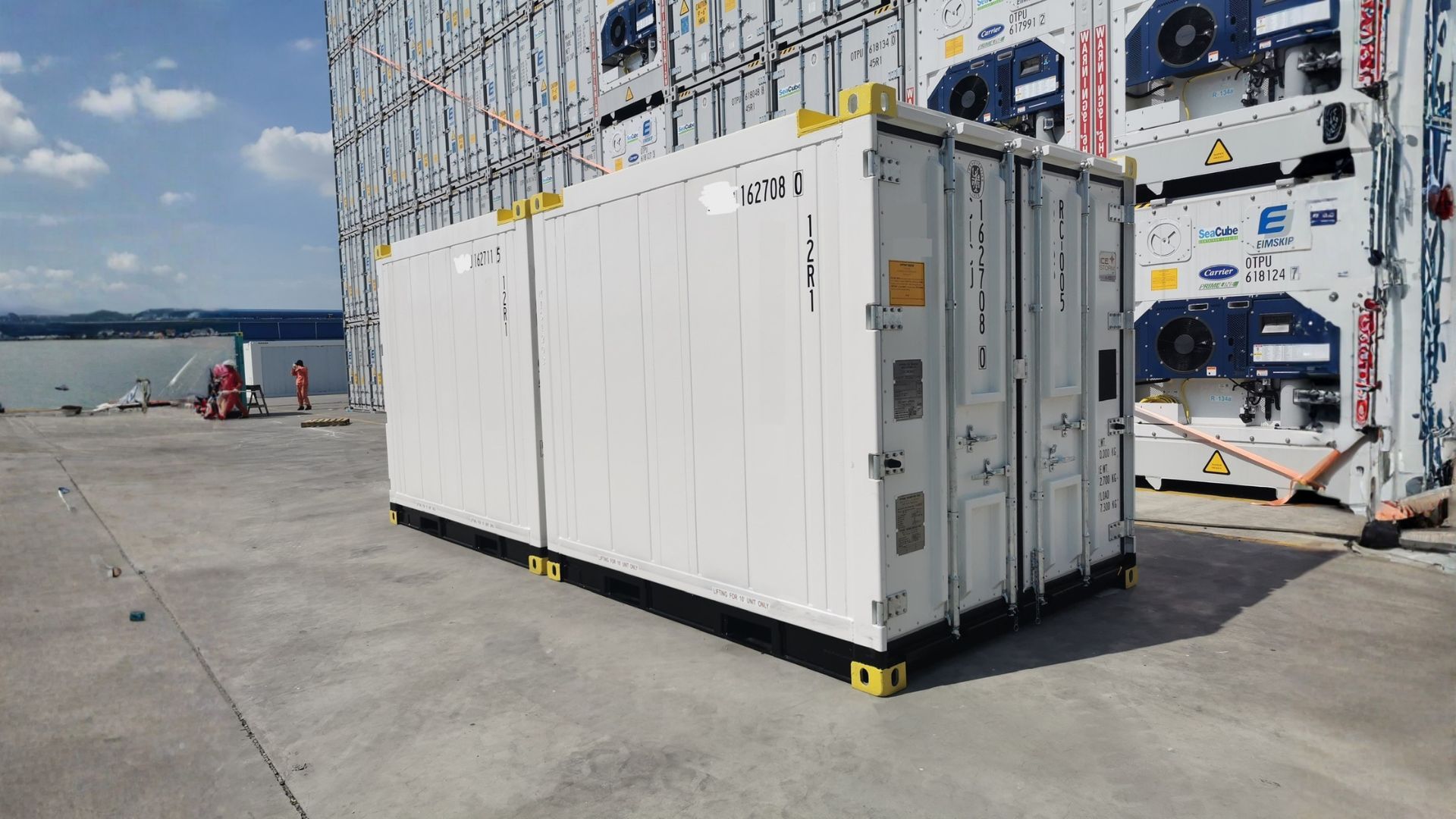

A twenty-foot unit measures 6.06 meters in length and 2.44 meters in width, occupying a footprint that fits easily within any standard industrial parking bay. The complication begins with the vehicle delivering the box, because skeletal trailers and flatbed prime movers require substantial turning aprons to reverse squarely into dock openings. If your distribution park features an apron space under 30 meters between facing dock doors, a prime mover carrying a short chassis can struggle with sightlines and sharp trailer articulation.
We see frequent issues when facilities spot a short unit onto a dock leveler designed for full-length forty-foot trailers. Because the tandem wheels on a twenty-foot chassis sit closer to the dock pit, the slope of your yard apron can tilt the container floor at a steeper angle than expected. If your warehouse staff drives electric counterbalance forklifts over the dock plate, that aggressive breakover angle can cause the underside of low-clearance equipment to bottom out directly against the lip plate.
Door Height and Loading Access
Reversing the container flush against dock seals does not guarantee smooth access for your material handling equipment. Container rear doors swing open 270 degrees and latch against external side walls, but if your dock bay features projecting wall bumpers or guide pipes spaced tightly together, those door leaves cannot pin back flat.
- Inspect exterior dock seal widths to verify that swung-back door leaves clear the side pads without tearing the protective vinyl fabric.
- Check dock leveler lip reach to make sure the plate extends at least 300 millimeters past the container door sill and internal floor step.
- Confirm that the overhead dock door opening provides full vertical clearance above the 2.28-meter door header of the container so high-mast forklifts enter cleanly.
When you cannot fold the rear doors completely flat against the container exterior, they project backward into the dock seal opening, which pinches your usable entry width down from 2.34 meters to less than 2.15 meters. That restricted opening prevents dual-pallet entry and forces your team to load every single unit load using walkie stackers or center-seated pallet trucks.
Does 20 ft Container Size Provide Enough Floor Capacity?
Space utilization inside a 20 ft container size demands tight discipline because you cannot afford the dead floor zones common in longer shipping equipment. If your packaging design does not align neatly with the 5.9-meter internal floor length, you end up moving expensive void fillers rather than salable product.
Standard Pallet Floor Layouts
Industrial supply chains run primarily on two standard base footprints: the standard industrial pallet measuring 1000mm by 1200mm, and the Euro pallet measuring 800mm by 1200mm. Because internal width sits right around 2.35 meters, your layout choices remain mathematically bounded.
| Pallet Standard | Pallet Dimensions | Maximum Floor Fit (Single Layer) | Loading Pattern |
|---|---|---|---|
| Standard Industrial | 1000mm x 1200mm | 10 units (up to 11 turned) | Row-wise pairing down length |
| Euro Pallet | 800mm x 1200mm | 11 units | Interlocking pinwheel pattern |
| Half Pallet / Retail | 600mm x 800mm | 22 units | Straight grid pairs |
If you use standard 1000mm by 1200mm industrial pallets, loading them straight down the center yields ten pallet positions, leaving an awkward dead channel of roughly 35 centimeters between the cargo and one wall. To recover that space, experienced loaders run an alternating pinwheel pattern that turns select pallets sideways, allowing you to wedge an eleventh unit into the threshold of the door. That eleventh pallet makes the difference between hitting target freight cost per unit or losing margin on the shipment, but your warehouse team must secure the final row with dunnage bags to prevent the pallets from sliding into the lock rods during transit.
Stacking Limitations
Carrying eleven pallets on the floor solves only half of your capacity equation; you must determine whether your product packaging supports double stacking up to the ceiling. With an interior roof height of 2.39 meters, each palletized unit load must measure no more than 1.15 meters tall, including the wooden pallet base, if you plan to stack two layers. If your product features corrugated board that softens under high humidity, bottom boxes will crease under static loads during a three-week sea voyage, causing entire stacks to lean and jam inside the container walls.
When your freight cannot bear top loads, your floor space efficiency drops immediately to roughly 50 percent of the box's cubic capacity. In those circumstances, we recommend building specialized interior decking or using cargo beam shoring bars slotted into wall tracks to build an artificial second floor. This technique preserves carton integrity without forcing you to ship empty air above expensive cargo.
Are Container Singapore Logistics Options Cost Prohibitive?
Singapore serves as a global transshipment hub, which means freight rates through local terminals reflect tight international capacity and rapid container turnaround demands. Managing a container singapore booking requires you to balance port storage tariffs against domestic trucking rates to prevent small administrative delays from generating massive terminal charges.
Port Transit Considerations
Vessels cycling through the Port of Singapore operate on rigid berth windows managed by terminal operators like PSA. While pure ocean freight rates into Singapore stay competitive due to high vessel frequency along major East-West sailing routes, shipping lines enforce strict detention and demurrage schedules once a box discharges onto local quays.
Free time allowances for standard ocean boxes dropped in Singapore typically range between three and five days before terminal demurrage charges kick in. If your clearing documents stall at customs, daily storage fees compound quickly, often climbing after the initial grace period expires. We advise cargo owners to file digital permits through TradeNet well before the vessel enters local waters so drayage operators can pull boxes the moment they clear the gantry crane.
Local Terminal Handling
Moving freight through Singapore involves several mandatory local fees that freight forwarders list beneath the ocean line haul rate. You must budget for these items accurately to evaluate your true landed cost per shipment.
- Terminal Handling Charges (THC): Charged directly by shipping lines to cover loading and offloading services between vessel and yard.
- Port entry and security dues: Statutory maritime port charges assessed for administrative handling and gate clearance.
- Electronic booking and documentation fees: Administrative tariffs for processing digital bill of lading releases through the national trade portal.
- Fuel and chassis surcharges: Drayage carrier fees tied to local prime mover transit between port berths and local industrial corridors.
For shippers moving regular monthly volumes, booking twenty-foot units exclusively can increase your overall terminal cost per cubic meter. Because local handling and gate administrative fees apply on a per-box basis rather than by weight, clearing two twenty-foot boxes always costs substantially more in local charges than clearing a single forty-foot unit carrying the same gross cubic volume.
Can Container SG Delivery Navigate Restricted Local Access?
Delivering cargo within industrial zones across Tuas, Jurong, or Changi requires careful route coordination because land constraints dictate tight building envelopes and strict municipal vehicle regulations. Arranging a container sg delivery demands that you verify physical site conditions before dispatching a prime mover to avoid dry-run haulage penalties.
Urban Site Access Checks
Singapore industrial estates frequently feature multi-story ramp-up warehouses, tight cul-de-sacs, and basement loading docks built with strict height barriers. Standard prime movers hauling twenty-foot skeletal chassis need an overhead clearance of at least 4.2 to 4.5 meters to travel beneath overpasses, covered loading bays, and overhead fire-sprinkler arrays.
If your facility lacks a dedicated external unloading bay, side-loader deliveries present their own challenges. A side-loader drops stabilizers directly onto the asphalt to ground the container along the vehicle's right-hand flank, requiring at least eight meters of clear, unobstructed horizontal space across the roadway. If parked service vehicles or industrial skips block that working corridor, the driver cannot deploy hydraulic stabilizer arms, forcing the carrier to abort delivery and return the container to an off-site holding yard.
Depot Staging Requirements
When factory gates cannot accept an immediate container turn, logistics operators stage equipment in local off-dock container yards spread across western Singapore. Staging containers off-terminal buys you time, but it introduces extra handling layers that require clear operational oversight.
- The transport company pulls the laden box from the seaport terminal before free time expires and shuttles it to a licensed private depot.
- Depot overhead reach stackers lift the box off the road chassis and ground it in a secure staging lane.
- The depot operator logs the container into their yard management system, charging a lift-on/lift-off (LOLO) fee alongside daily land rent.
- Once your receiving bay signals clearance, a secondary prime mover mounts the container and completes final delivery to your premises.
We see companies waste thousands of dollars each month by using depots as unplanned auxiliary storage. Depot staging works brilliantly as an insurance policy against port demurrage fees, but you should treat it as an emergency buffer rather than standard warehousing. Moving freight directly from vessel hook to your warehouse floor in a single drayage leg remains the only way to protect operational margins.
Frequently Asked Questions
What is the size of a 20ft container?
A standard 20ft intermodal container measures 6.06 meters (20 feet) long, 2.44 meters (8 feet) wide, and 2.59 meters (8 feet 6 inches) high on the outside. Inside, it offers usable space measuring 5.90 meters long, 2.35 meters wide, and 2.39 meters high, yielding roughly 33.2 cubic meters of total volume. The container weighs around 2,200 to 2,400 kilograms empty and can carry a maximum payload of approximately 28,000 kilograms, subject to road legal gross limits.
What is the standard size of a shipping container?
The standard size of an ocean shipping container refers to either a 20ft or 40ft General Purpose dry van built to ISO dimensions. Both types share an exterior width of 2.44 meters (8 feet) and a standard height of 2.59 meters (8 feet 6 inches), while High Cube variants measure 2.89 meters (9 feet 6 inches) in height. The 20-foot model has an exterior length of 6.06 meters, while the 40-foot version measures 12.19 meters long and provides double the floor capacity for light to medium-density freight.
If you are reviewing your cargo configurations or need assistance navigating local haulage and depot requirements, our team can help you map out an efficient freight plan.
